Do the same as CellByCellVoronoiDist with the neighbourhood computation. More...

#include <Voronoi_Rn.h>

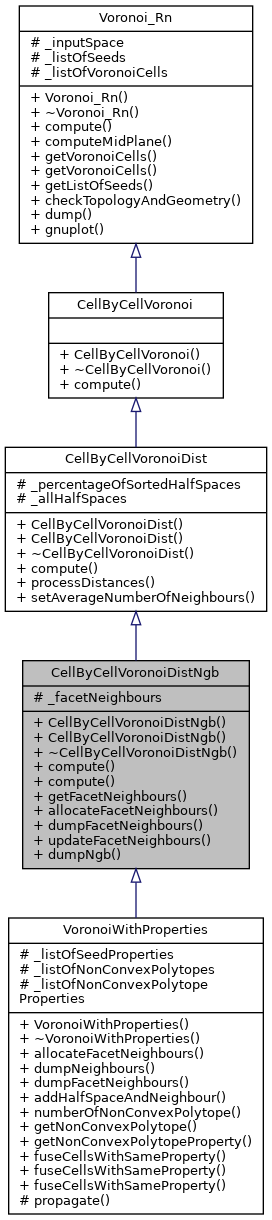

Inheritance diagram for CellByCellVoronoiDistNgb:

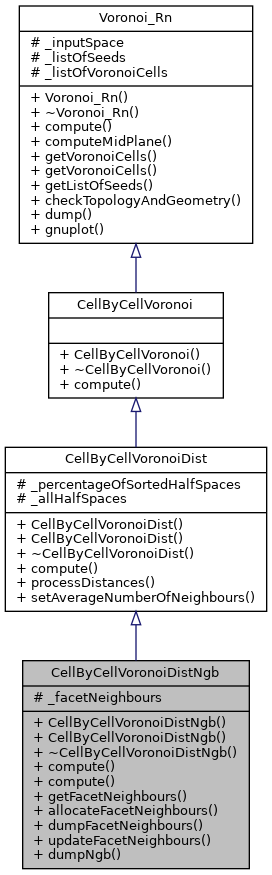

Collaboration diagram for CellByCellVoronoiDistNgb:

Public Member Functions
	CellByCellVoronoiDistNgb (const boost::shared_ptr< Polytope_Rn > &is, const std::vector< Point_Rn > &lop)
	Constructor. More...

	CellByCellVoronoiDistNgb (const boost::shared_ptr< Polytope_Rn > &is, const std::vector< Point_Rn > &lop, double percent)

virtual	~CellByCellVoronoiDistNgb ()
	Destructor. More...

virtual bool	compute ()
	Run the whole algorithm. More...

virtual bool	compute (std::vector< Point_Rn >::const_iterator iteBeg, std::vector< Point_Rn >::const_iterator iteEnd)
	Run the algorithm on a sub list from iteBeg to iteEnd. More...

const std::vector< std::vector< std::pair< boost::shared_ptr< HalfSpace_Rn >, unsigned int > > > &	getFacetNeighbours () const

virtual void	allocateFacetNeighbours ()

void	dumpFacetNeighbours (std::ostream &this_ostream) const

virtual void	updateFacetNeighbours (const std::vector< std::pair< double, unsigned int > > &allDistances, boost::shared_ptr< Polytope_Rn > newVoronoiCell, unsigned int counter, unsigned int newTruncationStep)

void	dumpNgb (std::ostream &this_ostream) const

Public Member Functions inherited from CellByCellVoronoiDist
	CellByCellVoronoiDist (const boost::shared_ptr< Polytope_Rn > &is, const std::vector< Point_Rn > &lop)
	Constructor. More...

	CellByCellVoronoiDist (const boost::shared_ptr< Polytope_Rn > &is, const std::vector< Point_Rn > &lop, double percent)

virtual	~CellByCellVoronoiDist ()
	Destructor. More...

void	processDistances (std::vector< std::pair< double, unsigned int > > &allDistances, std::vector< Point_Rn >::const_iterator newVoronoiSeed, boost::shared_ptr< Polytope_Rn > newVoronoiCell)
	The distance criterion is going to be used to classify partially or globally the way in which we process the cells' half-spaces. More...

void	setAverageNumberOfNeighbours (double pc)
	When we want to do a partial sort so try to assess the average number of facet neighbours for each cell. More...

Public Member Functions inherited from CellByCellVoronoi
	CellByCellVoronoi (const boost::shared_ptr< Polytope_Rn > &is, const std::vector< Point_Rn > &lop)
	Constructor. More...

virtual	~CellByCellVoronoi ()
	Destructor. More...

Public Member Functions inherited from Voronoi_Rn
	Voronoi_Rn (const boost::shared_ptr< Polytope_Rn > &inputSpace, const std::vector< Point_Rn > &listOfPoints)
	Refers to the class WithProperties. More...

virtual	~Voronoi_Rn ()
	Destructor. More...

boost::shared_ptr< HalfSpace_Rn >	computeMidPlane (std::vector< Point_Rn >::const_iterator seed1, std::vector< Point_Rn >::const_iterator seed2)
	Compute the half-space containing seed1, in between seed1 and seed2, according to the growing seed property. More...

const std::vector< boost::shared_ptr< Polytope_Rn > > &	getVoronoiCells () const

std::vector< boost::shared_ptr< Polytope_Rn > >	getVoronoiCells ()

const std::vector< Point_Rn > &	getListOfSeeds () const

bool	checkTopologyAndGeometry () const

void	dump (std::ostream &out) const
	Dump the cell structure on the given output. More...

void	gnuplot (std::ostream &out) const

Protected Attributes
std::vector< std::vector< std::pair< boost::shared_ptr< HalfSpace_Rn >, unsigned int > > >	_facetNeighbours
	For the current cell, store its neighbour numbers. _facetNeighbours[i] = { (H0, i0), (H1, i1), ... }. More...

Protected Attributes inherited from CellByCellVoronoiDist
double	_percentageOfSortedHalfSpaces
	The amount of half-spaces we want to sort. More...

std::vector< boost::shared_ptr< HalfSpace_Rn > >	_allHalfSpaces
	For each seed, the list of the half-spaces used to build its cell. More...

Protected Attributes inherited from Voronoi_Rn
const boost::shared_ptr< Polytope_Rn > &	_inputSpace
	The original space to be divided. More...

const std::vector< Point_Rn > &	_listOfSeeds
	The list of input points. More...

std::vector< boost::shared_ptr< Polytope_Rn > >	_listOfVoronoiCells
	The list of polytopes partitioning the whole space. More...

Additional Inherited Members
Public Types inherited from Voronoi_Rn
enum	TypeOfAlgorithm { Incremental = 0, CellByCell = 1, CellByCellDist = 2, CellByCellDistNgb = 3, CellByCellDistNgb_1pc = 4, CellByCellDistNgb_10pc = 5, CellByCellDistNgb_20pc = 6, CellByCellDistNgb_30pc = 7, CellByCellDistNgb_40pc = 8, WithProperties = 10 }
	Choose the kind of algorithm to be run. More...

Detailed Description

Do the same as CellByCellVoronoiDist with the neighbourhood computation.

Definition at line 231 of file Voronoi_Rn.h.

Constructor & Destructor Documentation

◆ CellByCellVoronoiDistNgb() [1/2]

CellByCellVoronoiDistNgb::CellByCellVoronoiDistNgb	(	const boost::shared_ptr< Polytope_Rn > &	is,
		const std::vector< Point_Rn > &	lop
	)

inline

Constructor.

Constructor

Parameters

is	The input space in which the Voronoi diagram is computed
lop	The list of Voronoi seeds

Definition at line 240 of file Voronoi_Rn.h.

◆ CellByCellVoronoiDistNgb() [2/2]

CellByCellVoronoiDistNgb::CellByCellVoronoiDistNgb	(	const boost::shared_ptr< Polytope_Rn > &	is,
		const std::vector< Point_Rn > &	lop,
		double	percent
	)

inline

Constructor

Parameters

is	The input space in which the Voronoi diagram is computed
lop	The list of Voronoi seeds
percent	The percentage of seeds to be sorted according to distance criteria

Definition at line 246 of file Voronoi_Rn.h.

◆ ~CellByCellVoronoiDistNgb()

virtual CellByCellVoronoiDistNgb::~CellByCellVoronoiDistNgb ( )

inlinevirtual

Destructor.

Definition at line 249 of file Voronoi_Rn.h.

Member Function Documentation

◆ allocateFacetNeighbours()

virtual void CellByCellVoronoiDistNgb::allocateFacetNeighbours ( )

inlinevirtual

Reimplemented in VoronoiWithProperties.

Definition at line 260 of file Voronoi_Rn.h.

Here is the caller graph for this function:

◆ compute() [1/2]

bool CellByCellVoronoiDistNgb::compute ( )

virtual

Run the whole algorithm.

Reimplemented from CellByCellVoronoiDist.

Definition at line 498 of file Voronoi_Rn.cpp.

◆ compute() [2/2]

bool CellByCellVoronoiDistNgb::compute	(	std::vector< Point_Rn >::const_iterator	iteBeg,
		std::vector< Point_Rn >::const_iterator	iteEnd
	)

virtual

Run the algorithm on a sub list from iteBeg to iteEnd.

Definition at line 504 of file Voronoi_Rn.cpp.

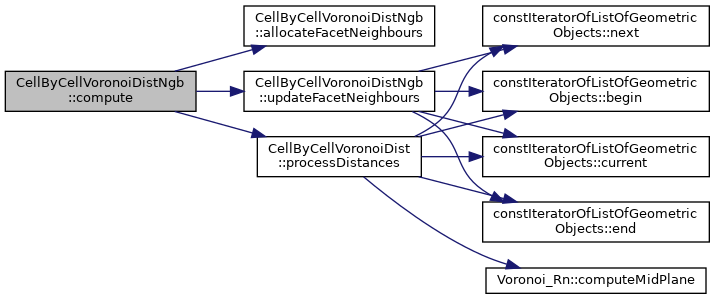

Here is the call graph for this function:

◆ dumpFacetNeighbours()

void CellByCellVoronoiDistNgb::dumpFacetNeighbours ( std::ostream & this_ostream ) const

Definition at line 573 of file Voronoi_Rn.cpp.

◆ dumpNgb()

void CellByCellVoronoiDistNgb::dumpNgb ( std::ostream & this_ostream ) const

inline

Definition at line 268 of file Voronoi_Rn.h.

◆ getFacetNeighbours()

const std::vector< std::vector< std::pair<boost::shared_ptr<HalfSpace_Rn>, unsigned int> > >& CellByCellVoronoiDistNgb::getFacetNeighbours ( ) const

inline

Definition at line 258 of file Voronoi_Rn.h.

◆ updateFacetNeighbours()

void CellByCellVoronoiDistNgb::updateFacetNeighbours	(	const std::vector< std::pair< double, unsigned int > > &	allDistances,
		boost::shared_ptr< Polytope_Rn >	newVoronoiCell,
		unsigned int	counter,
		unsigned int	newTruncationStep
	)

virtual

Definition at line 588 of file Voronoi_Rn.cpp.

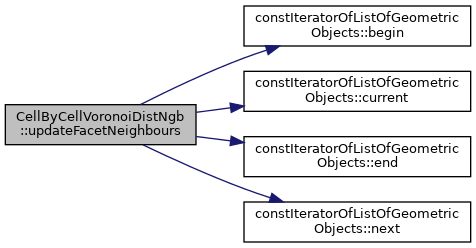

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ _facetNeighbours

std::vector< std::vector< std::pair<boost::shared_ptr<HalfSpace_Rn>, unsigned int> > > CellByCellVoronoiDistNgb::_facetNeighbours

protected

For the current cell, store its neighbour numbers. _facetNeighbours[i] = { (H0, i0), (H1, i1), ... }.

Definition at line 287 of file Voronoi_Rn.h.

The documentation for this class was generated from the following files:

/mnt/c/Users/vindelos/Documents/TEST/TEST/co/politopix/trunk/Voronoi_Rn.h
/mnt/c/Users/vindelos/Documents/TEST/TEST/co/politopix/trunk/Voronoi_Rn.cpp
