A half-space whose frontier is a linear (n-1) dimension space.
_constant + _coefficients[0].x1 + ... + _coefficients[n-1].xn >= 0. More...

#include <HalfSpace_Rn.h>

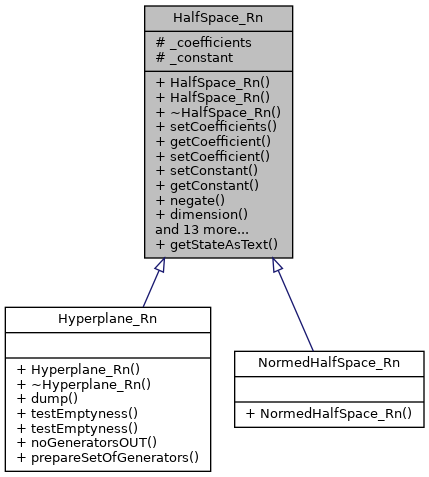

Inheritance diagram for HalfSpace_Rn:

Collaboration diagram for HalfSpace_Rn:

Public Types
enum	State { hs_ON = 0, hs_IN = 1, hs_OUT = 2, hs_UNKNOWN = 3, hs_IN_OR_OUT = 4, hs_OUT_TO_ON = 5 }

Public Member Functions
	HalfSpace_Rn ()
	Constructor. More...

	HalfSpace_Rn (unsigned int n)

virtual	~HalfSpace_Rn ()

void	setCoefficients (const vector< double > &vec)

double	getCoefficient (unsigned int i) const

void	setCoefficient (unsigned int i, double c)

void	setConstant (double c)

double	getConstant () const

void	negate ()

int	dimension () const

std::string	getSideAsText () const

boost::numeric::ublas::vector< double >::const_iterator	begin () const

boost::numeric::ublas::vector< double >::const_iterator	end () const

const boost::numeric::ublas::vector< double > &	vect () const

double	computeDistancePointHyperplane (const boost::numeric::ublas::vector< double > &thisPoint) const

double	computeDistancePointHyperplane (const boost::numeric::ublas::vector< double > &thisPoint, double halfSpaceNorm) const

double	computeDistancePointHyperplane (const boost::numeric::ublas::vector< double > &thisPoint, boost::numeric::ublas::vector< double > &projectedPoint, double halfSpaceNorm) const

virtual void	dump (std::ostream &this_ostream) const

void	print () const

virtual bool	testEmptyness (const std::vector< boost::shared_ptr< Generator_Rn_SD > > &GN_IN, const std::vector< boost::shared_ptr< Generator_Rn_SD > > &GN_OUT, const std::vector< boost::shared_ptr< Generator_Rn_SD > > &GN_ON)
	Specific to the double description algorithm Test whether an intersection with a half-space has generated an empty set or not. More...

virtual bool	testEmptyness (unsigned int GN_IN, unsigned int GN_OUT, unsigned int GN_ON)
	Specific to the double description algorithm Test whether an intersection with a half-space has generated an empty set or not. More...

virtual void	noGeneratorsOUT (std::vector< boost::shared_ptr< Generator_Rn_SD > > &listOfGeneratorSD, const std::vector< boost::shared_ptr< Generator_Rn_SD > > &GN_ON)
	Specific to the double description algorithm When chopping a polyhedral body with a hyperplane, if the set of generators OUT is empty, only keep the generators ON and ignore the generators IN. In the case of a half-space, keep things unchanged i.e. listOfGeneratorSD = GN_IN + GN_ON. More...

virtual void	prepareSetOfGenerators (std::vector< boost::shared_ptr< Generator_Rn_SD > > &GN_IN, std::vector< boost::shared_ptr< Generator_Rn_SD > > &GN_OUT)
	Specific to the double description algorithm When chopping a polyhedral body with a hyperplane, if the set of generators OUT is empty, only keep the generators ON and ignore the generators IN. In the case of a half-space, keep things unchanged i.e. listOfGeneratorSD = GN_IN + GN_ON. More...

Static Public Member Functions
static std::string	getStateAsText (const HalfSpace_Rn::State &)

Protected Attributes
boost::numeric::ublas::vector< double >	_coefficients
	The normal vector. More...

double	_constant
	The second member constant. More...

Detailed Description

A half-space whose frontier is a linear (n-1) dimension space.
_constant + _coefficients[0].x1 + ... + _coefficients[n-1].xn >= 0.

Definition at line 40 of file HalfSpace_Rn.h.

Member Enumeration Documentation

◆ State

enum HalfSpace_Rn::State

Enumerator
hs_ON
hs_IN
hs_OUT
hs_UNKNOWN
hs_IN_OR_OUT
hs_OUT_TO_ON

Definition at line 44 of file HalfSpace_Rn.h.

Constructor & Destructor Documentation

◆ HalfSpace_Rn() [1/2]

HalfSpace_Rn::HalfSpace_Rn ( )

inline

Constructor.

Definition at line 53 of file HalfSpace_Rn.h.

◆ HalfSpace_Rn() [2/2]

HalfSpace_Rn::HalfSpace_Rn ( unsigned int n )

Definition at line 30 of file HalfSpace_Rn.cpp.

◆ ~HalfSpace_Rn()

virtual HalfSpace_Rn::~HalfSpace_Rn ( )

inlinevirtual

Definition at line 57 of file HalfSpace_Rn.h.

Member Function Documentation

◆ begin()

boost::numeric::ublas::vector<double>::const_iterator HalfSpace_Rn::begin ( ) const

inline

Definition at line 75 of file HalfSpace_Rn.h.

◆ computeDistancePointHyperplane() [1/3]

double HalfSpace_Rn::computeDistancePointHyperplane ( const boost::numeric::ublas::vector< double > & thisPoint ) const

inline

Definition at line 83 of file HalfSpace_Rn.h.

◆ computeDistancePointHyperplane() [2/3]

double HalfSpace_Rn::computeDistancePointHyperplane	(	const boost::numeric::ublas::vector< double > &	thisPoint,
		boost::numeric::ublas::vector< double > &	projectedPoint,
		double	halfSpaceNorm
	)		const

inline

Definition at line 97 of file HalfSpace_Rn.h.

◆ computeDistancePointHyperplane() [3/3]

double HalfSpace_Rn::computeDistancePointHyperplane	(	const boost::numeric::ublas::vector< double > &	thisPoint,
		double	halfSpaceNorm
	)		const

inline

Definition at line 91 of file HalfSpace_Rn.h.

◆ dimension()

int HalfSpace_Rn::dimension ( ) const

inline

Definition at line 71 of file HalfSpace_Rn.h.

◆ dump()

virtual void HalfSpace_Rn::dump ( std::ostream & this_ostream ) const

inlinevirtual

Reimplemented in Hyperplane_Rn.

Definition at line 107 of file HalfSpace_Rn.h.

◆ end()

boost::numeric::ublas::vector<double>::const_iterator HalfSpace_Rn::end ( ) const

inline

Definition at line 77 of file HalfSpace_Rn.h.

◆ getCoefficient()

double HalfSpace_Rn::getCoefficient ( unsigned int i ) const

Definition at line 33 of file HalfSpace_Rn.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getConstant()

double HalfSpace_Rn::getConstant ( ) const

inline

Definition at line 67 of file HalfSpace_Rn.h.

Here is the caller graph for this function:

◆ getSideAsText()

std::string HalfSpace_Rn::getSideAsText ( ) const

inline

Definition at line 73 of file HalfSpace_Rn.h.

◆ getStateAsText()

std::string HalfSpace_Rn::getStateAsText ( const HalfSpace_Rn::State & state )

static

Definition at line 55 of file HalfSpace_Rn.cpp.

Here is the caller graph for this function:

◆ negate()

void HalfSpace_Rn::negate ( )

inline

Definition at line 69 of file HalfSpace_Rn.h.

◆ noGeneratorsOUT()

virtual void HalfSpace_Rn::noGeneratorsOUT	(	std::vector< boost::shared_ptr< Generator_Rn_SD > > &	listOfGeneratorSD,
		const std::vector< boost::shared_ptr< Generator_Rn_SD > > &	GN_ON
	)

inlinevirtual

Specific to the double description algorithm When chopping a polyhedral body with a hyperplane, if the set of generators OUT is empty, only keep the generators ON and ignore the generators IN. In the case of a half-space, keep things unchanged i.e. listOfGeneratorSD = GN_IN + GN_ON.

Reimplemented in Hyperplane_Rn.

Definition at line 143 of file HalfSpace_Rn.h.

◆ prepareSetOfGenerators()

virtual void HalfSpace_Rn::prepareSetOfGenerators	(	std::vector< boost::shared_ptr< Generator_Rn_SD > > &	GN_IN,
		std::vector< boost::shared_ptr< Generator_Rn_SD > > &	GN_OUT
	)

inlinevirtual

Specific to the double description algorithm When chopping a polyhedral body with a hyperplane, if the set of generators OUT is empty, only keep the generators ON and ignore the generators IN. In the case of a half-space, keep things unchanged i.e. listOfGeneratorSD = GN_IN + GN_ON.

Specific to the double description algorithm In the other case of an intersection with a half-space this function does nothing.

Reimplemented in Hyperplane_Rn.

Definition at line 158 of file HalfSpace_Rn.h.

◆ print()

void HalfSpace_Rn::print ( ) const

inline

Definition at line 118 of file HalfSpace_Rn.h.

Here is the caller graph for this function:

◆ setCoefficient()

void HalfSpace_Rn::setCoefficient	(	unsigned int	i,
		double	c
	)

Definition at line 44 of file HalfSpace_Rn.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setCoefficients()

void HalfSpace_Rn::setCoefficients ( const vector< double > & vec )

inline

Definition at line 59 of file HalfSpace_Rn.h.

◆ setConstant()

void HalfSpace_Rn::setConstant ( double c )

inline

Definition at line 65 of file HalfSpace_Rn.h.

Here is the caller graph for this function:

◆ testEmptyness() [1/2]

virtual bool HalfSpace_Rn::testEmptyness	(	const std::vector< boost::shared_ptr< Generator_Rn_SD > > &	GN_IN,
		const std::vector< boost::shared_ptr< Generator_Rn_SD > > &	GN_OUT,
		const std::vector< boost::shared_ptr< Generator_Rn_SD > > &	GN_ON
	)

inlinevirtual

Specific to the double description algorithm Test whether an intersection with a half-space has generated an empty set or not.

Reimplemented in Hyperplane_Rn.

Definition at line 125 of file HalfSpace_Rn.h.

◆ testEmptyness() [2/2]

virtual bool HalfSpace_Rn::testEmptyness	(	unsigned int	GN_IN,
		unsigned int	GN_OUT,
		unsigned int	GN_ON
	)

inlinevirtual

Specific to the double description algorithm Test whether an intersection with a half-space has generated an empty set or not.

Reimplemented in Hyperplane_Rn.

Definition at line 134 of file HalfSpace_Rn.h.

◆ vect()

const boost::numeric::ublas::vector<double>& HalfSpace_Rn::vect ( ) const

inline

Definition at line 79 of file HalfSpace_Rn.h.

Here is the caller graph for this function:

Member Data Documentation

◆ _coefficients

boost::numeric::ublas::vector<double> HalfSpace_Rn::_coefficients

protected

The normal vector.

Definition at line 165 of file HalfSpace_Rn.h.

◆ _constant

double HalfSpace_Rn::_constant

protected

The second member constant.

Definition at line 167 of file HalfSpace_Rn.h.

The documentation for this class was generated from the following files:

/mnt/c/Users/vindelos/Documents/TEST/TEST/co/politopix/trunk/HalfSpace_Rn.h
/mnt/c/Users/vindelos/Documents/TEST/TEST/co/politopix/trunk/HalfSpace_Rn.cpp
