Point_Rn Class Reference

Creation of a n-coordinate geometric point designed to be shared by its neighbour faces. More...

#include <Point_Rn.h>

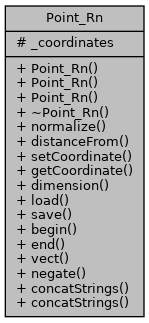

Collaboration diagram for Point_Rn:

Public Member Functions
	Point_Rn (unsigned int n)
	Create a n-coordinates point. More...
	Point_Rn (unsigned int n, double u)
	Fill the n-dimensional point with the constant u. More...
	Point_Rn (double u1, double u2, double u3)
	Create a 3-dimensional point. More...
virtual	~Point_Rn ()
double	normalize ()
double	distanceFrom (const Point_Rn &)
void	setCoordinate (unsigned int i, double val)
double	getCoordinate (unsigned int i) const
int	dimension () const
void	load (std::istream &this_istream)
void	save (std::ostream &this_ostream) const
vector< double >::const_iterator	begin () const
vector< double >::const_iterator	end () const
const vector< double > &	vect () const
void	negate ()

Static Public Member Functions
static std::string	concatStrings (int i, const std::string &functionName)
	Useful function to provide error message to the exception mechanism. More...
static std::string	concatStrings (int i, double val, const std::string &functionName)
	Useful function to provide error message to the exception mechanism. More...

Protected Attributes
vector< double >	_coordinates

Detailed Description

Creation of a n-coordinate geometric point designed to be shared by its neighbour faces.

Definition at line 34 of file Point_Rn.h.

Constructor & Destructor Documentation

Point_Rn() [1/3]

Point_Rn::Point_Rn

(

unsigned int

n

)

Create a n-coordinates point.

Definition at line 30 of file Point_Rn.cpp.

Point_Rn() [2/3]

Point_Rn::Point_Rn	(	unsigned int	n,
		double	u
	)

Fill the n-dimensional point with the constant u.

Definition at line 34 of file Point_Rn.cpp.

Point_Rn() [3/3]

Point_Rn::Point_Rn	(	double	u1,
		double	u2,
		double	u3
	)

Create a 3-dimensional point.

Definition at line 38 of file Point_Rn.cpp.

~Point_Rn()

Point_Rn::~Point_Rn ( )

virtual

Definition at line 45 of file Point_Rn.cpp.

Member Function Documentation

begin()

vector<double>::const_iterator Point_Rn::begin ( ) const

inline

Definition at line 64 of file Point_Rn.h.

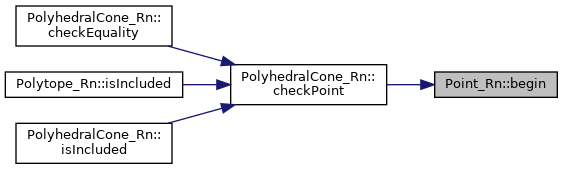

Here is the caller graph for this function:

concatStrings() [1/2]

std::string Point_Rn::concatStrings ( int  i, const std::string &  functionName  )

static

Useful function to provide error message to the exception mechanism.

Definition at line 79 of file Point_Rn.cpp.

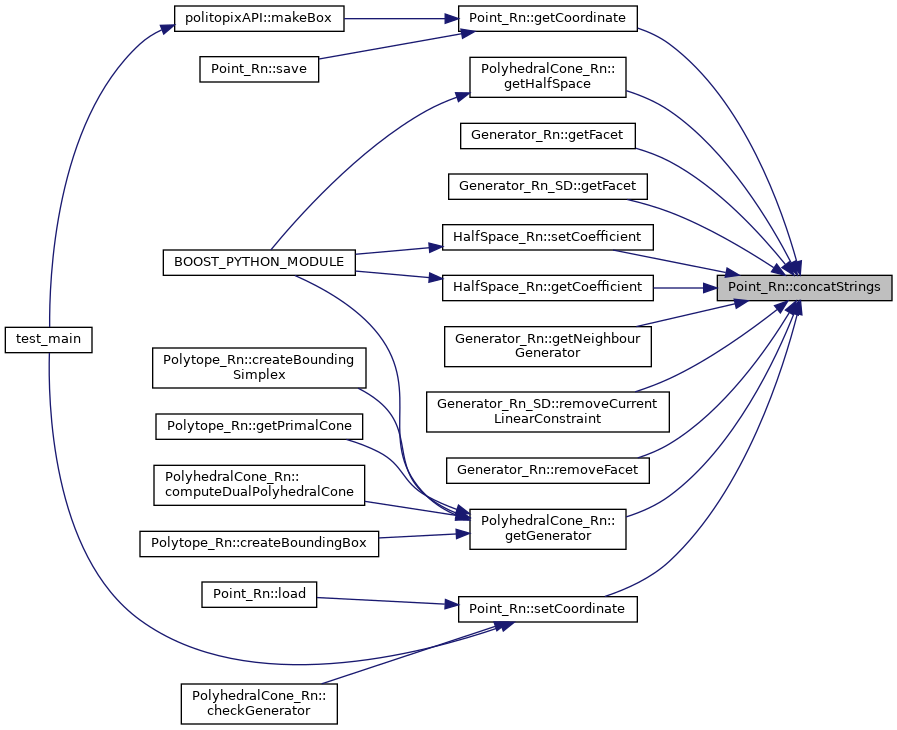

Here is the caller graph for this function:

concatStrings() [2/2]

std::string Point_Rn::concatStrings ( int  i, double  val, const std::string &  functionName  )

static

Useful function to provide error message to the exception mechanism.

Definition at line 93 of file Point_Rn.cpp.

dimension()

int Point_Rn::dimension ( ) const

inline

Definition at line 58 of file Point_Rn.h.

distanceFrom()

double Point_Rn::distanceFrom

(

const Point_Rn &

P

)

Definition at line 54 of file Point_Rn.cpp.

end()

vector<double>::const_iterator Point_Rn::end ( ) const

inline

Definition at line 66 of file Point_Rn.h.

Here is the caller graph for this function:

getCoordinate()

double Point_Rn::getCoordinate

(

unsigned int

i

)

const

Definition at line 70 of file Point_Rn.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

load()

void Point_Rn::load

(

std::istream &

this_istream

)

Definition at line 109 of file Point_Rn.cpp.

Here is the call graph for this function:

negate()

void Point_Rn::negate ( )

inline

Definition at line 70 of file Point_Rn.h.

normalize()

double Point_Rn::normalize

(

)

Definition at line 48 of file Point_Rn.cpp.

save()

void Point_Rn::save

(

std::ostream &

this_ostream

)

const

Definition at line 117 of file Point_Rn.cpp.

Here is the call graph for this function:

setCoordinate()

void Point_Rn::setCoordinate	(	unsigned int	i,
		double	val
	)

Definition at line 61 of file Point_Rn.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

vect()

const vector<double>& Point_Rn::vect ( ) const

inline

Definition at line 68 of file Point_Rn.h.

Member Data Documentation

_coordinates

vector<double> Point_Rn::_coordinates

protected

Definition at line 80 of file Point_Rn.h.

---

The documentation for this class was generated from the following files:

• /mnt/c/Users/vindelos/Documents/TEST/TEST/co/politopix/trunk/Point_Rn.h
• /mnt/c/Users/vindelos/Documents/TEST/TEST/co/politopix/trunk/Point_Rn.cpp
