Class dedicated to degeneration processing when looking for neighbours.
Let A be a polytope of \( \mathbb{R}^n, A = H_1^+ \cap H_2^+ \cap ... H_{n-1}^+ \cap ... H_k^+ \) where k>n.
Let [v_i, v_j] be a segment of two vertices of A such as: More...

#include <Neighbours_Rn.h>

Collaboration diagram for Neighbours_Rn:

Public Member Functions
	Neighbours_Rn ()

void	addGenerator (const std::vector< unsigned int > &commonFacets, unsigned int numbergenIN, unsigned int numbergenOUT, HalfSpace_Rn::State state)
	Tell whether a pseudo neighbor is a genuine one comparing set of half-spaces. More...

void	addGeneratorWithoutCheck (const std::vector< unsigned int > &commonFacets, unsigned int numbergenIN, unsigned int numbergenOUT, HalfSpace_Rn::State state)

void	begin ()
	Iterator function. More...

void	next ()
	Iterator function. More...

void	checkIterator ()
	Make sure we don't point on a generator with state ON. More...

bool	end () const
	Iterator function. More...

unsigned int	currentGenInNumber () const
	Iterator function. More...

unsigned int	currentGenOutNumber () const
	Iterator function. More...

const std::vector< unsigned int > &	commonHalfSpaces () const
	Iterator function. More...

void	dump (std::ostream &ofs) const
	Display the content on the stream passed as an argument. More...

Protected Attributes
unsigned int	_iterator
	A runner to iterate through the list of genuine neighbors. More...

std::vector< HalfSpace_Rn::State >	_GeneratorsState
	The pair of generators state. More...

std::vector< unsigned int >	_GeneratorsInNumber
	The generator numbers IN in a global list. More...

std::vector< unsigned int >	_GeneratorsOutNumber
	The generator numbers OUT in a global list. More...

std::vector< std::vector< unsigned int > >	_HSPerNewGenerators
	For each generator, store all raw pointers on their corresponding half-spaces. More...

Detailed Description

Class dedicated to degeneration processing when looking for neighbours.
Let A be a polytope of \( \mathbb{R}^n, A = H_1^+ \cap H_2^+ \cap ... H_{n-1}^+ \cap ... H_k^+ \) where k>n.
Let [v_i, v_j] be a segment of two vertices of A such as:

they share (n-1) hyperplanes in common: \( H_{ij} = \{ H_1, H_2, ... H_{n-1} \} \)
there exists an hyperplane \( \mathcal{H} \) separating [v_j, v_k]

We call [v_i, v_j] a pseudo-edge if it respects the first assumption. The question is: to which condition [v_i, v_j] is a genuine edge? Can we answer the question only by processing the pseudo-edges separated by the hyperplane \( \mathcal{H} \)? The straight line \( (v_i, v_j) \subset H_1 \cap H_2 \cap ... H_{n-1} \text{~with~} \mathcal{H} \neq H_u \), \( u \in \{ 1, ..., n-1 \} \). So \( H_1 \cap H_2 \cap ... H_{n-1} \cap H_n^+ \cap ... H_k^+ = F_A \) is a face of A of dimension at least 1. Let's assume [v_i, v_j] is not an edge of A, then it is not an edge of F_A and we cannot have F_A included neither in \( \mathcal{H}^+ \) nor in \( \mathcal{H}^- \) as \( \mathcal{H} \) separates [v_i, v_j] . So \( \mathcal{H} \) separates F_A and we can find an edge [v_a, v_b] of F_A such as:

\( \mathcal{H} \) separates [v_a, v_b] or
\( \mathcal{H} \) passes through v_a or
\( \mathcal{H} \) passes through v_b

As [v_a, v_b] is an edge of F_A, v_a and v_b share in common the list of hyperplanes H_ab . H_ab contains the (n-1) half-spaces \( H_1, H_2, ... H_{n-1} \) and others because the intersection \( H_1 \cap H_2 \cap ... H_{n-1} \) does not define a straight line. So if [v_i, v_j] is not an edge of A, we can find a genuine edge [v_a, v_b] , intersecting with \( \mathcal{H} \), such as \( H_{ij} \subset H_{ab} \)

Definition at line 59 of file Neighbours_Rn.h.

Constructor & Destructor Documentation

◆ Neighbours_Rn()

Neighbours_Rn::Neighbours_Rn ( )

inline

Definition at line 62 of file Neighbours_Rn.h.

Member Function Documentation

◆ addGenerator()

void Neighbours_Rn::addGenerator	(	const std::vector< unsigned int > &	commonFacets,
		unsigned int	numbergenIN,
		unsigned int	numbergenOUT,
		HalfSpace_Rn::State	state
	)

inline

Tell whether a pseudo neighbor is a genuine one comparing set of half-spaces.

Parameters

commonFacets	the set of common half-spaces pointers between this and gen
numbergenIN	the generator number candidate to be a genuine end of edge
numbergenOUT	the generator number candidate to be the other genuine end of edge
state	equal to HalfSpace_Rn::hs_IN_OR_OUT or HalfSpace_Rn::hs_ON according to the edge property

Definition at line 69 of file Neighbours_Rn.h.

Here is the call graph for this function:

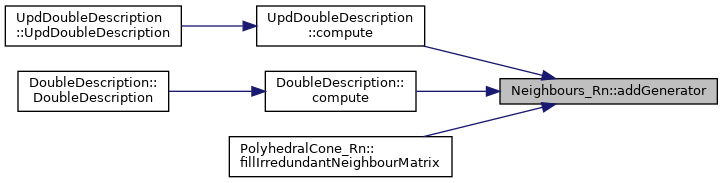

Here is the caller graph for this function:

◆ addGeneratorWithoutCheck()

void Neighbours_Rn::addGeneratorWithoutCheck	(	const std::vector< unsigned int > &	commonFacets,
		unsigned int	numbergenIN,
		unsigned int	numbergenOUT,
		HalfSpace_Rn::State	state
	)

inline

Definition at line 127 of file Neighbours_Rn.h.

◆ begin()

void Neighbours_Rn::begin ( )

inline

Iterator function.

Definition at line 139 of file Neighbours_Rn.h.

Here is the call graph for this function:

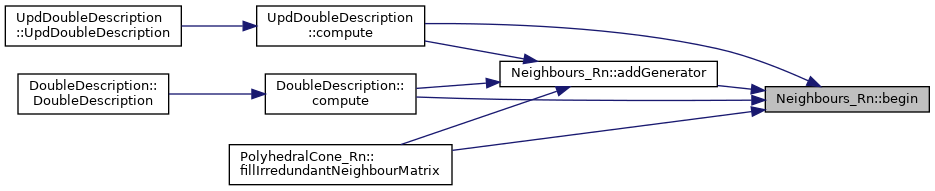

Here is the caller graph for this function:

◆ checkIterator()

void Neighbours_Rn::checkIterator ( )

inline

Make sure we don't point on a generator with state ON.

Definition at line 145 of file Neighbours_Rn.h.

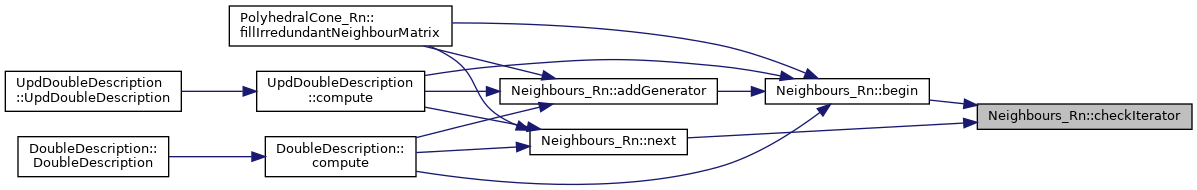

Here is the caller graph for this function:

◆ commonHalfSpaces()

const std::vector< unsigned int >& Neighbours_Rn::commonHalfSpaces ( ) const

inline

Iterator function.

Definition at line 160 of file Neighbours_Rn.h.

Here is the caller graph for this function:

◆ currentGenInNumber()

unsigned int Neighbours_Rn::currentGenInNumber ( ) const

inline

Iterator function.

Definition at line 154 of file Neighbours_Rn.h.

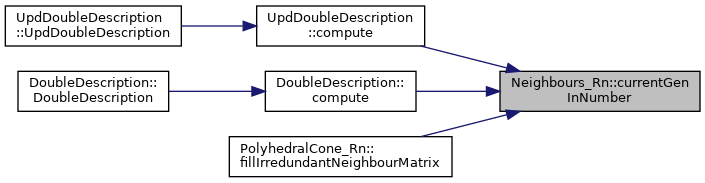

Here is the caller graph for this function:

◆ currentGenOutNumber()

unsigned int Neighbours_Rn::currentGenOutNumber ( ) const

inline

Iterator function.

Definition at line 157 of file Neighbours_Rn.h.

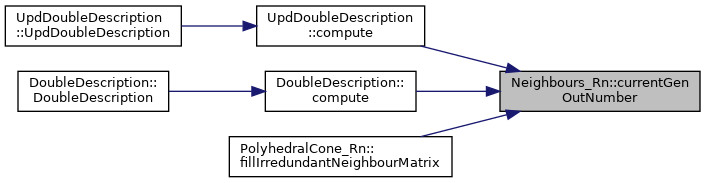

Here is the caller graph for this function:

◆ dump()

void Neighbours_Rn::dump ( std::ostream & ofs ) const

inline

Display the content on the stream passed as an argument.

Definition at line 163 of file Neighbours_Rn.h.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ end()

bool Neighbours_Rn::end ( ) const

inline

Iterator function.

Definition at line 151 of file Neighbours_Rn.h.

Here is the caller graph for this function:

◆ next()

void Neighbours_Rn::next ( )

inline

Iterator function.

Definition at line 142 of file Neighbours_Rn.h.

Here is the call graph for this function:

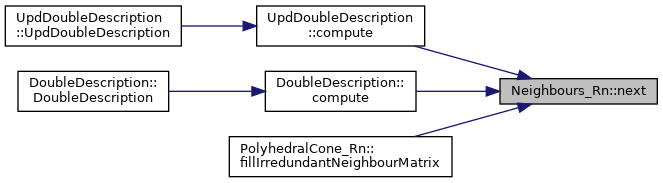

Here is the caller graph for this function:

Member Data Documentation

◆ _GeneratorsInNumber

std::vector< unsigned int > Neighbours_Rn::_GeneratorsInNumber

protected

The generator numbers IN in a global list.

Definition at line 183 of file Neighbours_Rn.h.

◆ _GeneratorsOutNumber

std::vector< unsigned int > Neighbours_Rn::_GeneratorsOutNumber

protected

The generator numbers OUT in a global list.

Definition at line 185 of file Neighbours_Rn.h.

◆ _GeneratorsState

std::vector< HalfSpace_Rn::State > Neighbours_Rn::_GeneratorsState

protected

The pair of generators state.

Definition at line 181 of file Neighbours_Rn.h.

◆ _HSPerNewGenerators

std::vector< std::vector< unsigned int > > Neighbours_Rn::_HSPerNewGenerators

protected

For each generator, store all raw pointers on their corresponding half-spaces.

Definition at line 187 of file Neighbours_Rn.h.

◆ _iterator

unsigned int Neighbours_Rn::_iterator

protected

A runner to iterate through the list of genuine neighbors.

Definition at line 179 of file Neighbours_Rn.h.

The documentation for this class was generated from the following file:

/mnt/c/Users/vindelos/Documents/TEST/TEST/co/politopix/trunk/Neighbours_Rn.h
