This class is designed to contain the list of all generators or half-spaces representing a polytope or a polyhedral cone. More...

#include <GeometricObjectIterator_Rn.h>

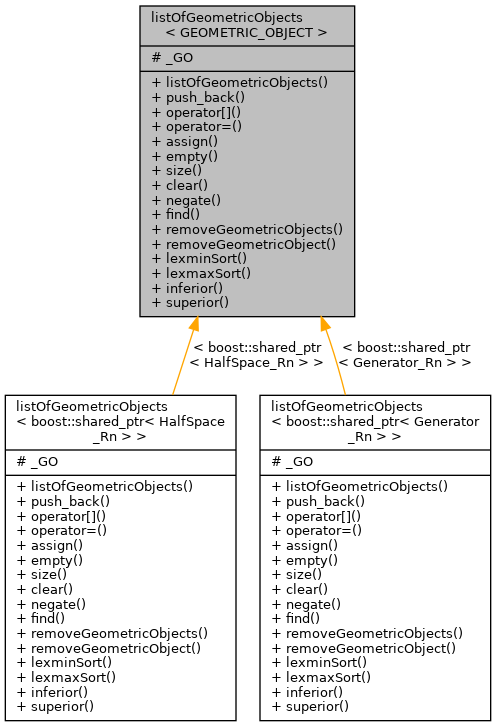

Inheritance diagram for listOfGeometricObjects< GEOMETRIC_OBJECT >:

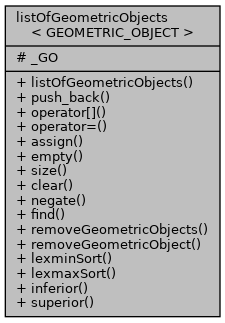

Collaboration diagram for listOfGeometricObjects< GEOMETRIC_OBJECT >:

Public Member Functions
	listOfGeometricObjects ()
	Constructor. More...

void	push_back (const GEOMETRIC_OBJECT &gn)
	Include a new half space in the list. More...

const GEOMETRIC_OBJECT &	operator[] (unsigned int i) const
	Return the i-th generator. More...

void	operator= (const listOfGeometricObjects< GEOMETRIC_OBJECT > &listOfGN)
	Copies all elements from listOfGN to _GN. More...

void	assign (const listOfGeometricObjects< GEOMETRIC_OBJECT > &listOfGN)
	Copies all elements from listOfGN to _GN. More...

bool	empty () const
	Check whether the set is empty or not. More...

unsigned int	size () const
	Get the total number of stored elements. More...

void	clear ()
	Clear the whole list. More...

void	negate ()
	Multiply all generators or half-spaces by -1. More...

unsigned int	find (const GEOMETRIC_OBJECT &GO) const
	Find a given object in list.. More...

void	removeGeometricObjects (const std::set< GEOMETRIC_OBJECT > &setToRemove)
	Get rid of all the objects stored in the set. More...

void	removeGeometricObject (unsigned int j)
	Remove the geometric object number j from the list. More...

void	lexminSort (unsigned int step)

void	lexmaxSort (unsigned int step)

Static Public Member Functions
static bool	inferior (const GEOMETRIC_OBJECT &HS1, const GEOMETRIC_OBJECT &HS2)
	Tell whether a given object is declared inferior to another one. More...

static bool	superior (const GEOMETRIC_OBJECT &HS1, const GEOMETRIC_OBJECT &HS2)
	The opposite of the function inferior(HS1, HS2) More...

Protected Attributes
std::vector< GEOMETRIC_OBJECT >	_GO
	The full list of half spaces or generators for example. More...

Detailed Description

template<class GEOMETRIC_OBJECT>
class listOfGeometricObjects< GEOMETRIC_OBJECT >

This class is designed to contain the list of all generators or half-spaces representing a polytope or a polyhedral cone.

Definition at line 40 of file GeometricObjectIterator_Rn.h.

Constructor & Destructor Documentation

◆ listOfGeometricObjects()

template<class GEOMETRIC_OBJECT >

listOfGeometricObjects< GEOMETRIC_OBJECT >::listOfGeometricObjects ( )

inline

Constructor.

Definition at line 44 of file GeometricObjectIterator_Rn.h.

Member Function Documentation

◆ assign()

template<class GEOMETRIC_OBJECT >

void listOfGeometricObjects< GEOMETRIC_OBJECT >::assign ( const listOfGeometricObjects< GEOMETRIC_OBJECT > & listOfGN )

inline

Copies all elements from listOfGN to _GN.

Definition at line 57 of file GeometricObjectIterator_Rn.h.

◆ clear()

template<class GEOMETRIC_OBJECT >

void listOfGeometricObjects< GEOMETRIC_OBJECT >::clear ( )

inline

Clear the whole list.

Definition at line 67 of file GeometricObjectIterator_Rn.h.

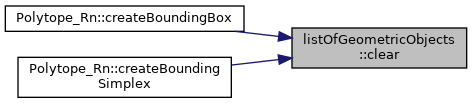

Here is the caller graph for this function:

◆ empty()

template<class GEOMETRIC_OBJECT >

bool listOfGeometricObjects< GEOMETRIC_OBJECT >::empty ( ) const

inline

Check whether the set is empty or not.

Definition at line 61 of file GeometricObjectIterator_Rn.h.

◆ find()

template<class GEOMETRIC_OBJECT >

unsigned int listOfGeometricObjects< GEOMETRIC_OBJECT >::find ( const GEOMETRIC_OBJECT & GO ) const

inline

Find a given object in list..

Definition at line 76 of file GeometricObjectIterator_Rn.h.

◆ inferior()

template<class GEOMETRIC_OBJECT >

static bool listOfGeometricObjects< GEOMETRIC_OBJECT >::inferior	(	const GEOMETRIC_OBJECT &	HS1,
		const GEOMETRIC_OBJECT &	HS2
	)

inlinestatic

Tell whether a given object is declared inferior to another one.

Definition at line 104 of file GeometricObjectIterator_Rn.h.

◆ lexmaxSort()

template<class GEOMETRIC_OBJECT >

void listOfGeometricObjects< GEOMETRIC_OBJECT >::lexmaxSort ( unsigned int step )

inline

Definition at line 129 of file GeometricObjectIterator_Rn.h.

◆ lexminSort()

template<class GEOMETRIC_OBJECT >

void listOfGeometricObjects< GEOMETRIC_OBJECT >::lexminSort ( unsigned int step )

inline

Definition at line 123 of file GeometricObjectIterator_Rn.h.

◆ negate()

template<class GEOMETRIC_OBJECT >

void listOfGeometricObjects< GEOMETRIC_OBJECT >::negate ( )

inline

Multiply all generators or half-spaces by -1.

Definition at line 70 of file GeometricObjectIterator_Rn.h.

◆ operator=()

template<class GEOMETRIC_OBJECT >

void listOfGeometricObjects< GEOMETRIC_OBJECT >::operator= ( const listOfGeometricObjects< GEOMETRIC_OBJECT > & listOfGN )

inline

Copies all elements from listOfGN to _GN.

Definition at line 53 of file GeometricObjectIterator_Rn.h.

◆ operator[]()

template<class GEOMETRIC_OBJECT >

const GEOMETRIC_OBJECT& listOfGeometricObjects< GEOMETRIC_OBJECT >::operator[] ( unsigned int i ) const

inline

Return the i-th generator.

Definition at line 50 of file GeometricObjectIterator_Rn.h.

◆ push_back()

template<class GEOMETRIC_OBJECT >

void listOfGeometricObjects< GEOMETRIC_OBJECT >::push_back ( const GEOMETRIC_OBJECT & gn )

inline

Include a new half space in the list.

Definition at line 47 of file GeometricObjectIterator_Rn.h.

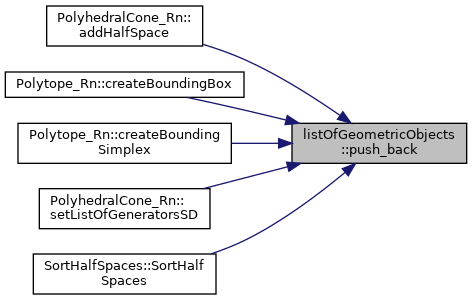

Here is the caller graph for this function:

◆ removeGeometricObject()

template<class GEOMETRIC_OBJECT >

void listOfGeometricObjects< GEOMETRIC_OBJECT >::removeGeometricObject ( unsigned int j )

inline

Remove the geometric object number j from the list.

Definition at line 101 of file GeometricObjectIterator_Rn.h.

◆ removeGeometricObjects()

template<class GEOMETRIC_OBJECT >

void listOfGeometricObjects< GEOMETRIC_OBJECT >::removeGeometricObjects ( const std::set< GEOMETRIC_OBJECT > & setToRemove )

inline

Get rid of all the objects stored in the set.

Definition at line 91 of file GeometricObjectIterator_Rn.h.

◆ size()

template<class GEOMETRIC_OBJECT >

unsigned int listOfGeometricObjects< GEOMETRIC_OBJECT >::size ( ) const

inline

Get the total number of stored elements.

Definition at line 64 of file GeometricObjectIterator_Rn.h.

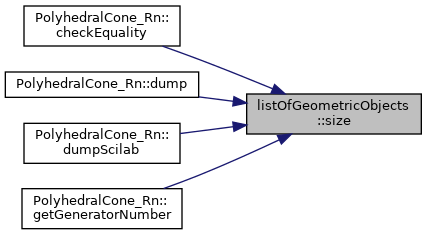

Here is the caller graph for this function:

◆ superior()

template<class GEOMETRIC_OBJECT >

static bool listOfGeometricObjects< GEOMETRIC_OBJECT >::superior	(	const GEOMETRIC_OBJECT &	HS1,
		const GEOMETRIC_OBJECT &	HS2
	)

inlinestatic

The opposite of the function inferior(HS1, HS2)

Definition at line 119 of file GeometricObjectIterator_Rn.h.

Member Data Documentation

◆ _GO

template<class GEOMETRIC_OBJECT >

std::vector< GEOMETRIC_OBJECT > listOfGeometricObjects< GEOMETRIC_OBJECT >::_GO

protected

The full list of half spaces or generators for example.

Definition at line 137 of file GeometricObjectIterator_Rn.h.

The documentation for this class was generated from the following file:

/mnt/c/Users/vindelos/Documents/TEST/TEST/co/politopix/trunk/GeometricObjectIterator_Rn.h
