This class can be more time-consuming than WeakRedundancyProcessing or NoRedundancyProcessing because it will perform extra checks in the process of intersecting half-spaces. To determine if two vertices are neighbors it will make sure not to count half-spaces marked as redundant. More...

#include <UpdDoubleDescription_Rn.h>

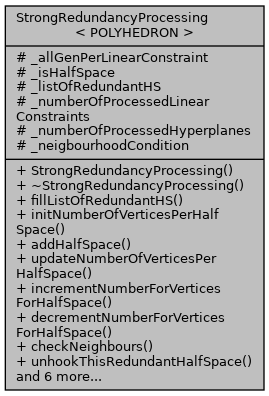

Collaboration diagram for StrongRedundancyProcessing< POLYHEDRON >:

Public Member Functions
	StrongRedundancyProcessing (unsigned int ngbCond)

virtual	~StrongRedundancyProcessing ()

void	fillListOfRedundantHS (const POLYHEDRON, std::vector< unsigned int > &, std::set< unsigned int > &getListOfRedundantHS)

void	initNumberOfVerticesPerHalfSpace (const std::vector< boost::shared_ptr< Generator_Rn_SD > > &LG, unsigned int nbHS, unsigned int nbHP=0)
	Make sure all back pointers from half-spaces to vertices are set. More...

void	addHalfSpace (bool isHyperplane)
	Make space for a new half-space. More...

void	updateNumberOfVerticesPerHalfSpace (unsigned int HS, const std::vector< boost::shared_ptr< Generator_Rn_SD > > &GN_ON)
	The current face must mark all the vertices with state ON. More...

void	incrementNumberForVerticesForHalfSpace (const boost::shared_ptr< Generator_Rn_SD > &GEN)
	Make sure all the half-spaces belonging to a given generator have their vertices number incremented. More...

void	decrementNumberForVerticesForHalfSpace (const boost::shared_ptr< Generator_Rn_SD > &GEN)
	Make sure all the half-spaces belonging to a given generator have their vertices number decremented. More...

bool	checkNeighbours (POLYHEDRON poly, const boost::shared_ptr< Generator_Rn_SD > &genIn, const boost::shared_ptr< Generator_Rn_SD > &genOut, std::vector< unsigned int > &commonFacets)

void	unhookThisRedundantHalfSpace (std::vector< boost::shared_ptr< Generator_Rn_SD > > &listOfGen, unsigned int thisRedundantHS, unsigned int numberOfGeneratorsPerFacetWithoutHyp)

virtual void	updateListOfRedundantHalfSpaces (std::vector< boost::shared_ptr< Generator_Rn_SD > > &listOfGen, int numberOfGeneratorsPerFacetWithoutHyp)

void	unhookRedundantHalfSpaces (POLYHEDRON poly)

void	unhookRedundantGenerators (POLYHEDRON poly)

void	markHdescription (TrackingOperatorToResult &trackerHdesc, unsigned int truncationStep)

void	dumpListOfRedundantHS (POLYHEDRON poly, std::ostream &this_stream)

void	dumpSD (std::ostream &this_stream)

Protected Attributes
std::vector< std::set< unsigned int > >	_allGenPerLinearConstraint
	Store all raw back pointers to know which vertices belong to a given half-space. More...

std::vector< bool >	_isHalfSpace
	Tell if a linear constraint is a half-space or a hyperplane. More...

std::set< unsigned int >	_listOfRedundantHS
	To know whether an half-space has been ticked redundant or not. More...

unsigned int	_numberOfProcessedLinearConstraints
	The total number of processed half-spaces. More...

unsigned int	_numberOfProcessedHyperplanes
	The total number of processed hyperplanes. More...

unsigned int	_neigbourhoodCondition
	To define the relation between generators. More...

Detailed Description

template<class POLYHEDRON>
class StrongRedundancyProcessing< POLYHEDRON >

This class can be more time-consuming than WeakRedundancyProcessing or NoRedundancyProcessing because it will perform extra checks in the process of intersecting half-spaces. To determine if two vertices are neighbors it will make sure not to count half-spaces marked as redundant.

Definition at line 623 of file UpdDoubleDescription_Rn.h.

Constructor & Destructor Documentation

◆ StrongRedundancyProcessing()

template<class POLYHEDRON >

StrongRedundancyProcessing< POLYHEDRON >::StrongRedundancyProcessing ( unsigned int ngbCond )

inline

Definition at line 626 of file UpdDoubleDescription_Rn.h.

◆ ~StrongRedundancyProcessing()

template<class POLYHEDRON >

virtual StrongRedundancyProcessing< POLYHEDRON >::~StrongRedundancyProcessing ( )

inlinevirtual

Definition at line 630 of file UpdDoubleDescription_Rn.h.

Member Function Documentation

◆ addHalfSpace()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::addHalfSpace ( bool isHyperplane )

inline

Make space for a new half-space.

Definition at line 677 of file UpdDoubleDescription_Rn.h.

◆ checkNeighbours()

template<class POLYHEDRON >

bool StrongRedundancyProcessing< POLYHEDRON >::checkNeighbours	(	POLYHEDRON	poly,
		const boost::shared_ptr< Generator_Rn_SD > &	genIn,
		const boost::shared_ptr< Generator_Rn_SD > &	genOut,
		std::vector< unsigned int > &	commonFacets
	)

inline

Call poly->checkNeighbours() with an extra argument not to count redundant half-spaces in the process of declaring two vertices as neighbors.

Definition at line 715 of file UpdDoubleDescription_Rn.h.

◆ decrementNumberForVerticesForHalfSpace()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::decrementNumberForVerticesForHalfSpace ( const boost::shared_ptr< Generator_Rn_SD > & GEN )

inline

Make sure all the half-spaces belonging to a given generator have their vertices number decremented.

Definition at line 707 of file UpdDoubleDescription_Rn.h.

◆ dumpListOfRedundantHS()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::dumpListOfRedundantHS	(	POLYHEDRON	poly,
		std::ostream &	this_stream
	)

inline

Definition at line 950 of file UpdDoubleDescription_Rn.h.

Here is the call graph for this function:

◆ dumpSD()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::dumpSD ( std::ostream & this_stream )

inline

Definition at line 971 of file UpdDoubleDescription_Rn.h.

◆ fillListOfRedundantHS()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::fillListOfRedundantHS	(	const	POLYHEDRON,
		std::vector< unsigned int > &	,
		std::set< unsigned int > &	getListOfRedundantHS
	)

inline

Definition at line 632 of file UpdDoubleDescription_Rn.h.

◆ incrementNumberForVerticesForHalfSpace()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::incrementNumberForVerticesForHalfSpace ( const boost::shared_ptr< Generator_Rn_SD > & GEN )

inline

Make sure all the half-spaces belonging to a given generator have their vertices number incremented.

Definition at line 700 of file UpdDoubleDescription_Rn.h.

◆ initNumberOfVerticesPerHalfSpace()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::initNumberOfVerticesPerHalfSpace	(	const std::vector< boost::shared_ptr< Generator_Rn_SD > > &	LG,
		unsigned int	nbHS,
		unsigned int	nbHP = `0`
	)

inline

Make sure all back pointers from half-spaces to vertices are set.

Definition at line 640 of file UpdDoubleDescription_Rn.h.

◆ markHdescription()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::markHdescription	(	TrackingOperatorToResult &	trackerHdesc,
		unsigned int	truncationStep
	)

inline

Definition at line 938 of file UpdDoubleDescription_Rn.h.

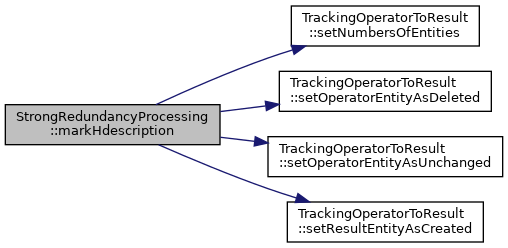

Here is the call graph for this function:

◆ unhookRedundantGenerators()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::unhookRedundantGenerators ( POLYHEDRON poly )

inline

In some cases fuzzy generators are located somewhere in a fuzzy and are computed with redundant half-spaces. As they are likely not to have the sufficient number of half-spaces through the process, unhook them.

Definition at line 921 of file UpdDoubleDescription_Rn.h.

Here is the call graph for this function:

◆ unhookRedundantHalfSpaces()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::unhookRedundantHalfSpaces ( POLYHEDRON poly )

inline

Definition at line 863 of file UpdDoubleDescription_Rn.h.

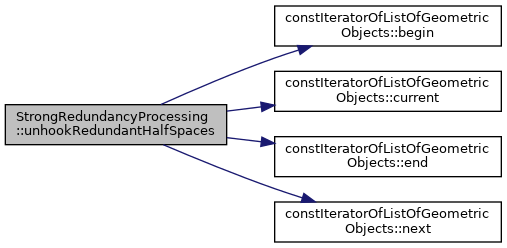

Here is the call graph for this function:

◆ unhookThisRedundantHalfSpace()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::unhookThisRedundantHalfSpace	(	std::vector< boost::shared_ptr< Generator_Rn_SD > > &	listOfGen,
		unsigned int	thisRedundantHS,
		unsigned int	numberOfGeneratorsPerFacetWithoutHyp
	)

inline

Thanks to _allGenPerLinearConstraint we know all the generators associated to a given linear constraint. So remove thisRedundantHS from all the generators pointing towards him.

Definition at line 732 of file UpdDoubleDescription_Rn.h.

Here is the caller graph for this function:

◆ updateListOfRedundantHalfSpaces()

template<class POLYHEDRON >

virtual void StrongRedundancyProcessing< POLYHEDRON >::updateListOfRedundantHalfSpaces	(	std::vector< boost::shared_ptr< Generator_Rn_SD > > &	listOfGen,
		int	numberOfGeneratorsPerFacetWithoutHyp
	)

inlinevirtual

Inspect all half-spaces, find their lists of generators and numbers of generators to know whether they are redundant or not.

The test checking if the list of generators of a half-space H is included into the list of another one. H might not be a redundant half-space. Take the case of a segment in 3D defined by 2 hyperplanes and 2 bounding half-spaces. The lists of generators of the 2 half-spaces are included into the list of generators of the 2 hyperplanes but the half-spaces are not redundant.

Definition at line 794 of file UpdDoubleDescription_Rn.h.

Here is the call graph for this function:

◆ updateNumberOfVerticesPerHalfSpace()

template<class POLYHEDRON >

void StrongRedundancyProcessing< POLYHEDRON >::updateNumberOfVerticesPerHalfSpace	(	unsigned int	HS,
		const std::vector< boost::shared_ptr< Generator_Rn_SD > > &	GN_ON
	)

unsigned int StrongRedundancyProcessing< POLYHEDRON >::_numberOfProcessedLinearConstraints

protected

The total number of processed half-spaces.

Definition at line 999 of file UpdDoubleDescription_Rn.h.

The documentation for this class was generated from the following file:

/mnt/c/Users/vindelos/Documents/TEST/TEST/co/politopix/trunk/UpdDoubleDescription_Rn.h
